This product is a single component, a thixotropic high viscosity, an ultraviolet-curing adhesive, which can form a transparency between the substrate in a few seconds under the ultraviolet irradiation of a certain wavelength, and the adhesion is high hardness. .

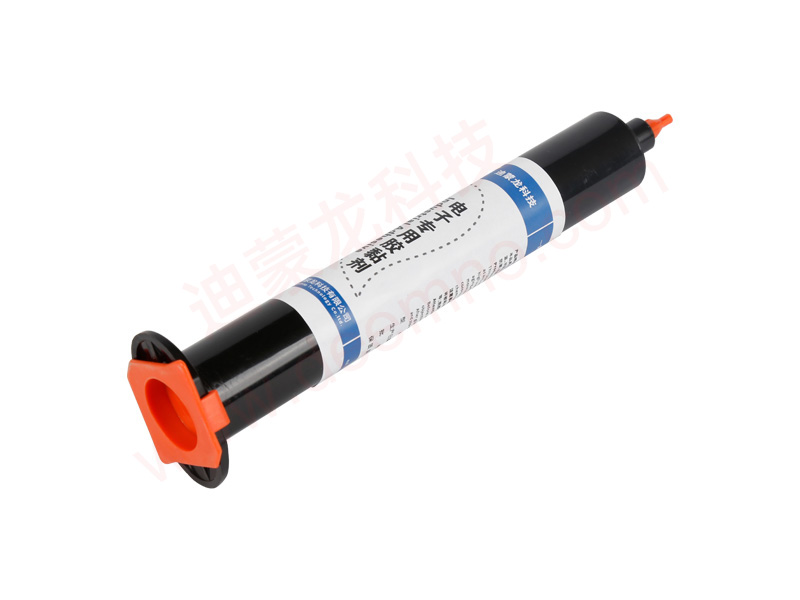

Dimonon UV-Curing Glue DML4115 is a single component, a thixotropic high viscosity, an ultraviolet curing adhesive, and a transparency can be formed between the substrate in a few seconds under the ultraviolet irradiation of a certain wavelength. Ok, you can't see any glue layer bonding. Excellent impact resistance is suitable for bonding of most materials.
Typical use typical application
For metal, glass, electronic components, bonding fixation of plastic classes.
Curing before curing
Exterior transparent liquid
Betting chemical ingredient acrylate
Viscosity (MPA.s) 3800 ~ 6000
Density (g / cm3) 1.10- 1.13
(GB/T 13354- 1992)
Curing using 40MW / cm2 ultraviolet rays
Surface abbreviation time (s) 10
Curing depth (mm @ 30s,) 3.0
Curing after curing
Hardness (Shao D) 65
Tensile strength (MPa) 20
Fracture elongation (%) 180
Shear strength (MPA, spray steel / glass) 12
Work temperature (° C) -50- 150
Dielectric constant (1MHz) 5.2
Dielectric loss (1MHz) 0.03
Dielectric intensity (kv / mm) 25
Volume resistivity (ω.cm) 8 × 1012
Instructions for use
1. The rubber site should be removed and clean.
2. Apply the rubber to the portion of the glue, irradiated with a 365 nm wavelength of ultraviolet lamp, confirming that the ultraviolet line can be permeated to the bonded portion.
3. The curing speed of this product depends on the intensity of the ultraviolet rays, the depth of the desired curing of the light source and the gum layer.
4. After using the item, you must cover the cover immediately.
5. This product must be packaged in black or other dark hose.
1. Stay away from children.
2. Do not reap back into the original packaging to avoid contaminating. This product contains methacrylate and has stimulating skin eye.
3. If you don't touch your eyes and skin, flush it with water and go to the hospital for examination.
4. When the customer storage temperature is lower than 20 ° C, in order to ensure the use of the effect, the customer uses it back at 25 ° C for 24 hours before use.
